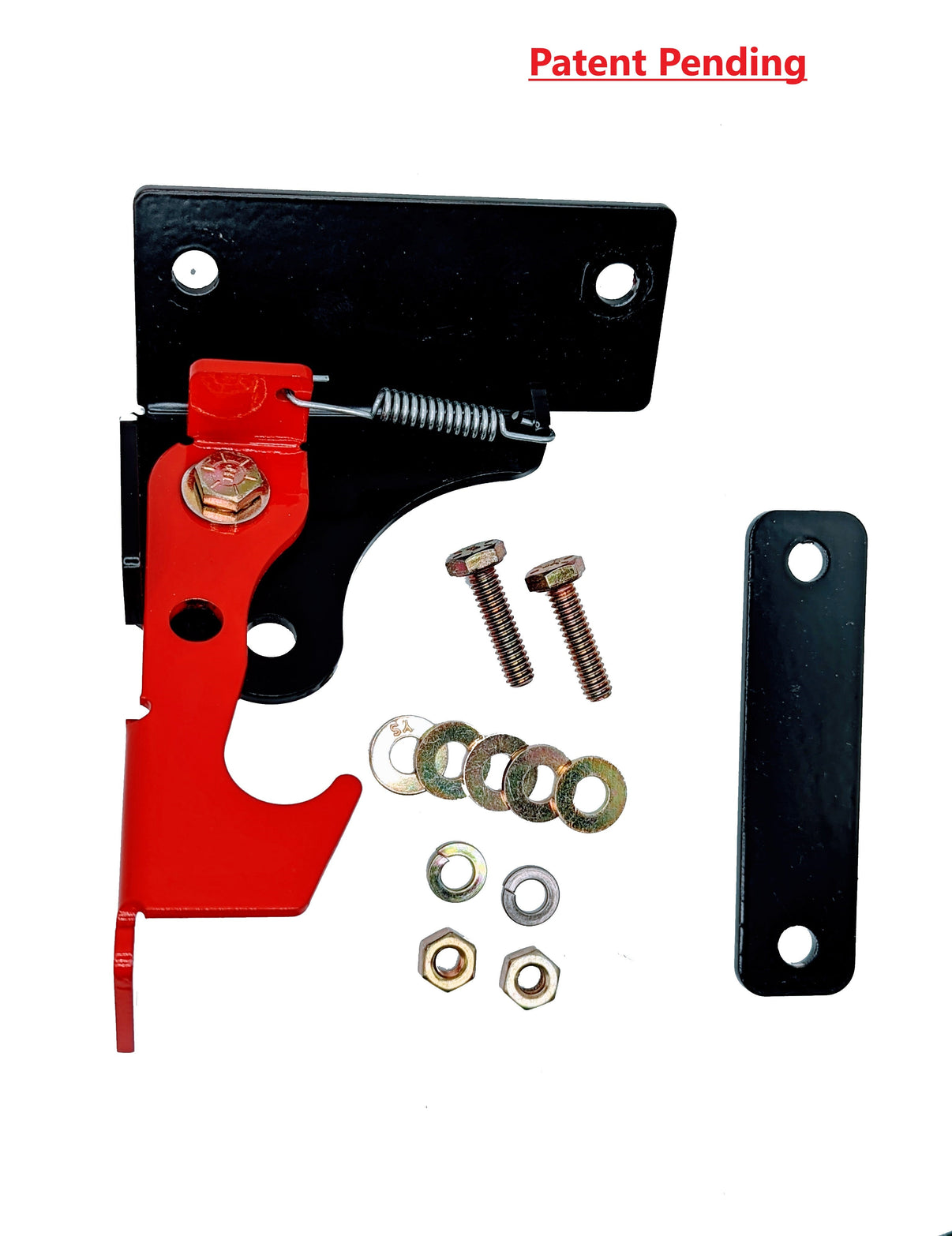

Parking brake for your TEXTRON XX - Fits ALL models
This brake allows for a pad-lock to be inserted through pre-machined holes to give you the added option to use as a theft deterrent.
Installation is simple and quick.
- Remove plastic rivet in the firewall (see picture on instruction pamphlet) and install one of the supplied bolts to hold the parking brake level. Removing this rivet may take longer than the entire install, some side cutters and a pry bar my be best to remove it.
- When positioned level, simply drill a 1/4" hole through the plastic firewall using the mounting plate as the drill guide. There is a plastic sheet on the front side of the firewall that needs to be drilled as well. Insert other bolt.
- Now install the supplied backing plate and lock nuts on the front of the firewall (engine side), tighten them up, and it's ready to go.
To operate, depress brake pedal with right foot, slide lever over brake pedal arm with your left foot and the SBT engages all 4 brakes. Once set, add your own pad lock (1/4" to 5/16" shaft) for that extra security. To release simply unlock pad lock, remove, and depress brake pedal.
ALWAYS USE PARK WITH THE SPRING BRAKE THINGY AND MAKE SURE YOUR BRAKES ARE IN GOOD WORKING CONDITION.
