Polaris RZR Pro XP 3-Speaker Audio System

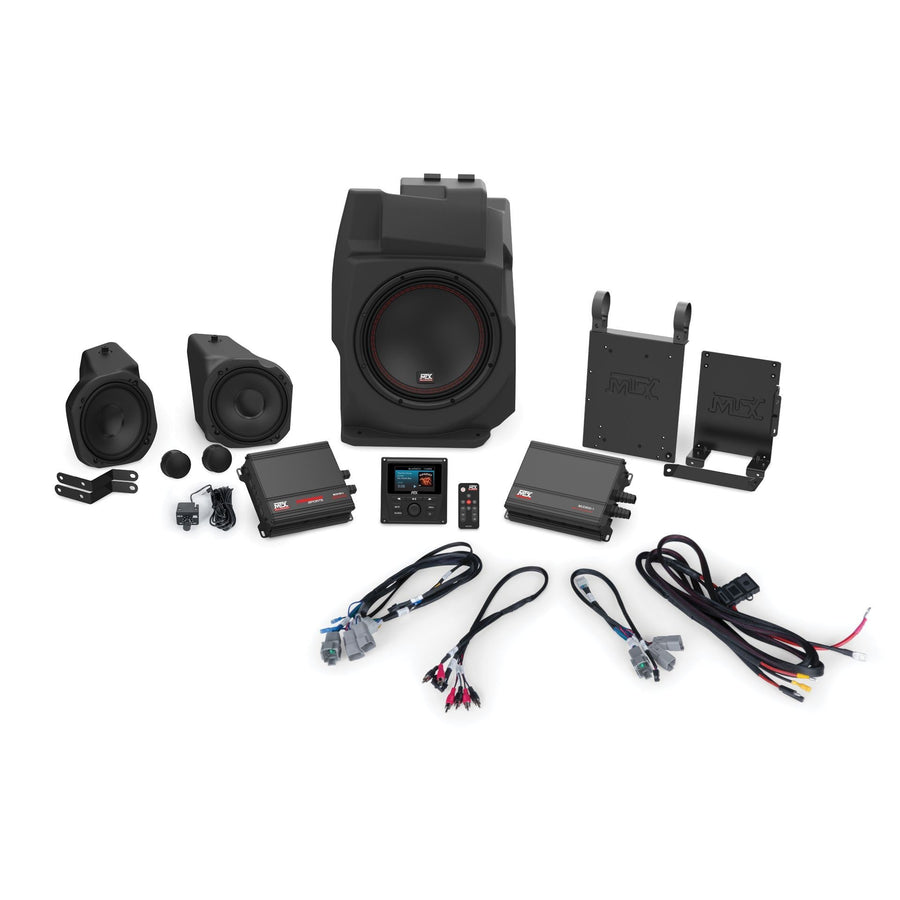

The PROXP-20-THUNDER3 audio kit is a complete plug and play 3-speaker audio system designed for the Polaris RZR Pro XP platform*. This kit fits all models that DO NOT have an installed Ride Command system. The heart of this system is the MTX AWMC3 media receiver that mounts in the upper dash factory panel and provides a full function, feature rich audio experience. Power for the system is provided by the included MUD100.4 4-channel and MUD600-1 monoblock amplifiers. Front audio reproduction is handled by a set of the PROXP-20-FS component speakers. The lower 6 ½” rotationally molded speaker pod is designed to install in a matter of minutes and feature integrated RGB lighting while the 1” soft dome tweeter mounts in the upper dash top factory enclosure. Low end comes from the PROXP-20-SW subwoofer enclosure with its high output 10” subwoofer in a ported enclosure that mounts in the dash on the passenger side of the vehicle. Connections are made via integrated quick connect, watertight harnesses designed for harshest of riding environments.

The PROXP-20-THUNDER3 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.

AWMC3 FEATURES

• 3" Full Color TFT Display
• SiriusXM Radio Ready
• AM / FM / WB Tuner
• Bluetooth Audio Streaming
• Internal Power Amplifier
• Weather Resistant (IP66)
• 2 Sets of Preouts (Front / Rear)
• Selectable EQ
• Backlit Control Buttons
• SiriusXM antenna/receiver and external AM/FM antenna not included.

PROXP-20-FS FEATURES

• All-Weather Construction with UV Inhibitor
• Custom Fit for Dash Panel Panel
• No Cutting or Drilling Required
• 6.5" Midrange Speaker
• 1.0" Teteron Soft Dome Tweeter
• 75-Watt RMS Power
• Integrated RGB Lighting
• Fully assembled Out of the Box

MUD100-4 FEATURES

• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 400-Watts RMS Power

MUD600.1 FEATURES

• High Efficiency Class D Topology
• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 600-Watts RMS Power

PROXP-20-SW FEATURES

• 10" Custom Fit Subwoofer Enclosure
• 400-Watt RMS Power
• High Mount Ported
• Mounts Behind Dashboard on Passenger Side
• Quick Installation with Installer Friendly Design
• Fully assembled Out of the Box

VEHICLE FITMENT

Polaris RZR Pro XP
