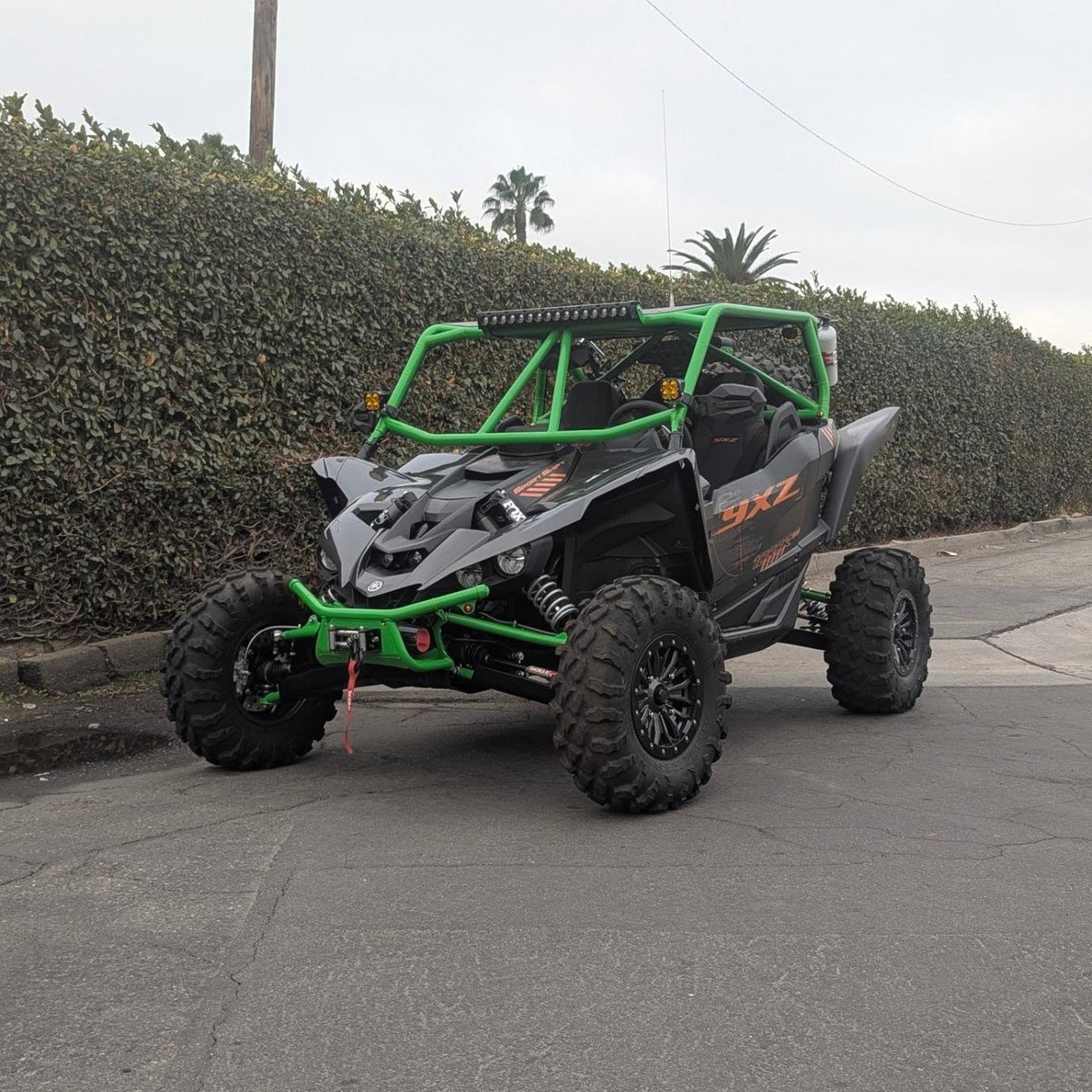

Yamaha YXZ Flat Top Roll Cage

Upgrade your Yamaha YXZ with the FastLab UTV Flat Top Roll Cage, a fully welded cage built for strength, protection, and clean off road style. Designed as a stronger replacement for the factory cage, this flat top design gives your YXZ a sharper custom profile while keeping the structure functional for dune, desert, and trail use.

This FastLab UTV Yamaha YXZ flat top cage is built with 1.75 inch OD .095 wall DOM tubing for the main structure and 1.50 inch OD .095 wall DOM tubing for the windshield cross bars. It includes front and rear intrusion bars, two whip tabs at each rear corner, and a .06 inch thick aluminum roof with a small visor bend. The cage sits 16.25 inches tall from the center of the B pillar through bolt to the highest point on the cage, giving the Yamaha YXZ a clean, low profile look.

FEATURES

• Fully welded flat top roll cage for Yamaha YXZ models
• Ready for powder coat and installation
• Main structure built from 1.75 inch OD .095 wall DOM tubing
• Windshield cross bars built from 1.50 inch OD .095 wall DOM tubing
• Includes front and rear intrusion bars
• Includes 2 whip tabs at each rear corner
• Includes .06 inch thick aluminum roof with small visor bend
• Cage sits 16.25 inches tall from center of B pillar through bolt to highest point
• Harness bar measures 1.75 inch OD diameter
• Clean flat top design gives the YXZ a sharp, aggressive profile


VEHICLE FITMENT

• Yamaha YXZ 1000R

INCLUDES

• 1.75" OD .095 Wall DOM Tubing for main structure
• 1.50" OD .095 Wall DOM Tubing for windshield cross bars
• Intrusion Bars Front and Rear
• 2 Whip tabs at each rear corner
• Aluminum Roof - .06 thick roof w/ small visor bend

NOTES

This Cage Sits 16.25″ (41.27cm) Tall From Center Of B Pillar Through Bolt To Highest Point On Cage Aluminum Roof Upgrade Is A Single Piece Of .06 Aluminum With A Slight Visor Bend Up Front To Match The Cage Radius Harness Bar Measures A 1.75″ OD Diameter.

VEHICLE FITMENT

Yamaha YXZ 1000R
